Aerosol can 65x240 18b NI

Aerosol can detail

PDF 65x240 18b

QUALITY CONTROL

  • Description:

    Aerosol can


  • Item Nr:

    200006


  • Dimensions:

    Ø 65 x 240 mm


  • Nominal pressure:

    18 Bar


  • Tinplate:

    Stone finish


  • Date:

    15.11.2017

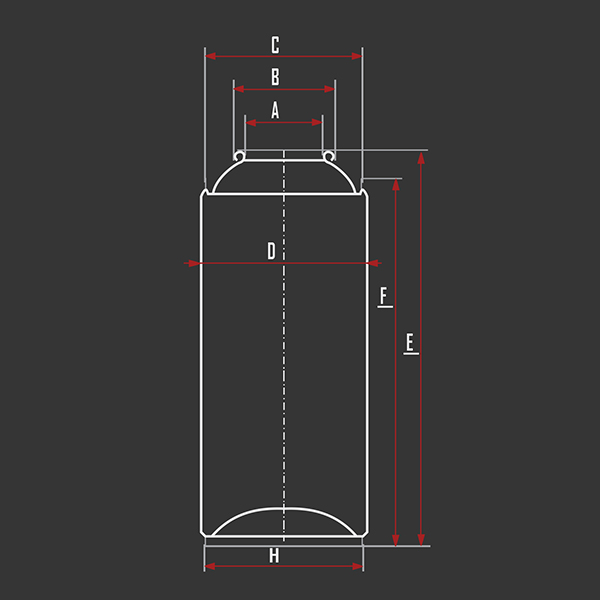

  • 1-inch opening internal (ref. A):

    25.4 mm  ± 0.15 mm


  • 1-inch opening external (ref. B):

    31.2 mm  ± 0.15 mm


  • Overseam diameter of cone (ref. C):

    63.2 mm  ± 0.30 mm


  • Body diameter (ref. D):

    65.9 mm  ± 0.30 mm


  • Nominal diameter:

    65 mm


  • Overall height (ref. E):

    253.5 mm  ± 1.00 mm


  • Nominal height (ref. F):

    240 mm


  • Overseam diameter of dome (ref. H):

    65.9 mm  ≤ D


  • Seam length of cone:

    3.3 mm  ± 0.15 mm


  • Seam length of dome:

    3.3 mm  ± 0.15 mm


  • Net volume:

    600 ml


  • Nominal volume:

    800 ml


  • Weight:

    104 g.  ± 5 g.


Aerosol can 65x240 18b NI

Can details

Pressure specification:

Deformation: Minimum: 18.0 Bar
Burst pressure: Minimum: 21.6 Bar

Cans production standards:

EN 15007 - TRG 300 - 75/324/EEC - 94/1/EC - 2008/47/EC - 2013/10/EU

Online quality controls:

100% Mikroleaking testing - 2 cm3/min. with Wilcomat®

Offline quality controls:

see dedicated documentation

Packaging:

Cans in compression pack on one-way 80x120x147 cm (WxLxH)
1138 pcs./pallet - up to 86488 pcs./truck - 5 layer/pallet
Pallet net/gross weight: 118/138 Kg.

The high quality of our products is the result of strict quality control throughout all stages of production.

Our approach to quality assurance is based on our own knowledge, extensive experience and continuous investment in new technologies and employee training.

Procurement and preparation

(procurement and preparation of materials with required certificates)

Cutting and preparation

(cutting and preparation of production materials according to documentation)

Preparation and filling of containers

(filling aerosol containers according to customer's recipe)

Production of containers

(production of aerosol containers according to documentation)

Quality control

100% Microlocation Test - 2 cm3 / min. with Wilcomat®

Final control

Final inspection of the made containers
